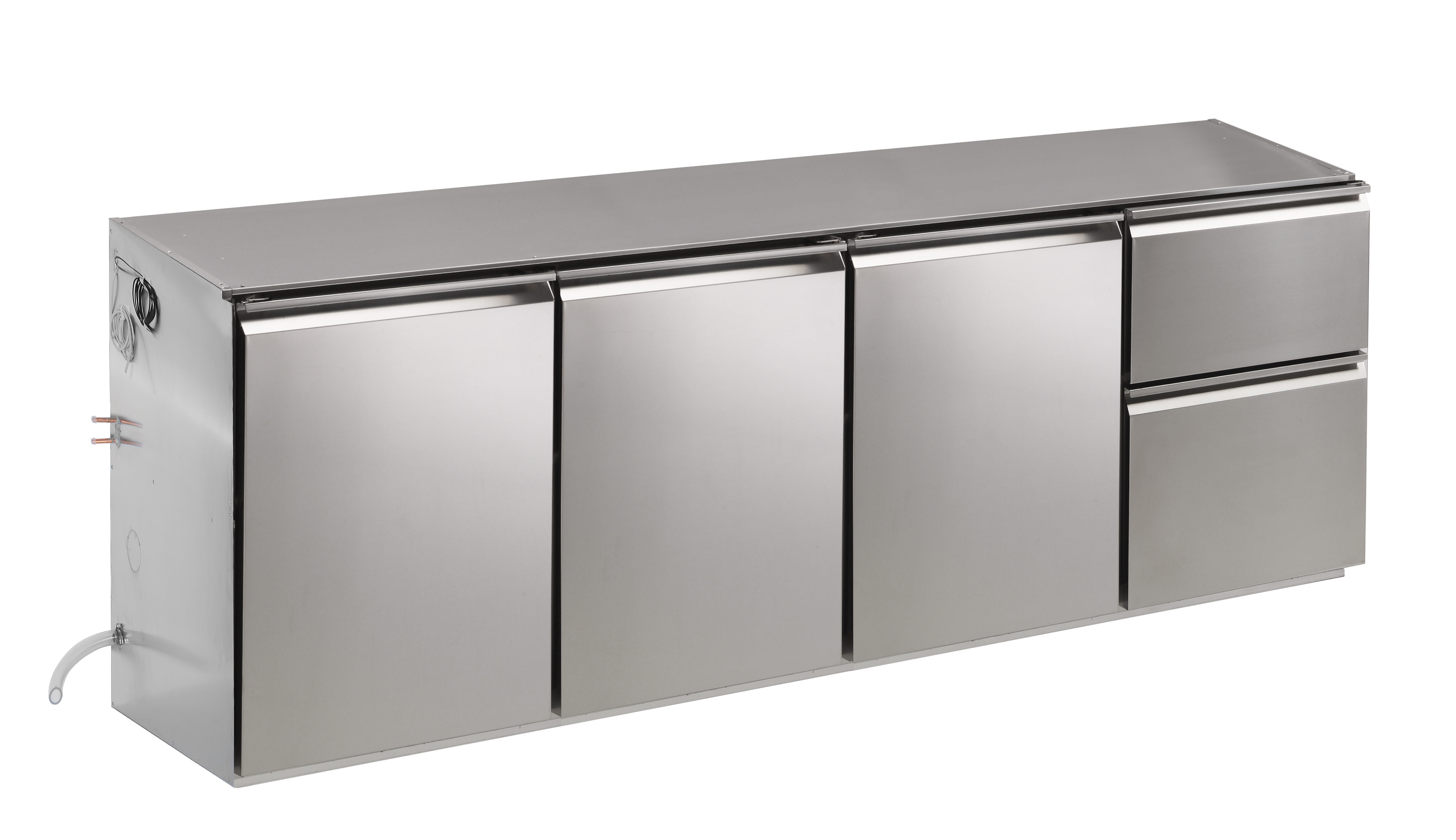

Refrigerated Beverage Counter, 4 LI REOS 432E

Refrigerated Beverage Counter, 4 LI REOS 432E

3 doors, 2 drawers, for external cooling,
Door size WxH: 480x740 mm
1loading rack (2/5+3/5)
Lines for central cooling on the left
Temperature range: +2°/+8°C
Connected load: 230 V / 140 W
Dimensions: 232 x 68 x 85 cm (WxDxH)
Decide for yourself on the
Configuration of your refrigerated display case,
the positions of the door loading racks
can be freely selected on request.
Please specify when ordering!

€4,097.00 * €5,389.00 *

You save: €1,292.00!

Prices plus VAT plus shipping costs

Available in 2 - 6 weeks

Korpus	1	2	3	4	4
Door/Drawer	1/0	2/0	3/0	4/0	0/8
Door/Drawer	0/2	1/2	2/2	3/2	0/9
Door/Drawer	0/3	1/3	2/3	3/3	0/10
Door/Drawer		0/4	1/4	2/4	0/11
Door/Drawer		0/5	1/5	2/5	0/12
Door/Drawer		0/6	1/6	2/6
Door/Drawer			0/6	1/6
Door/Drawer			0/7	1/7
Door/Drawer			0/8	1/8
Door/Drawer			0/9	1/9

Item n° 0380221

Constant cooling capacity combined with modern design, functionality... mehr

Close menu

Refrigerated Beverage Counter, 4 LI REOS 432E

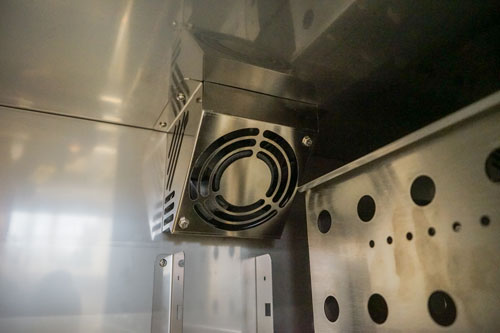

Constant cooling capacity combined with modern design, functionality and highest quality! The MAYWAY beverage coolers are ideal for storing your drinks and can be integrated into the counter to save space. Decide for yourself on the configuration of your refrigerated counter - with stainless steel doors, glass doors, functional drawers, bottle cooler, red wine drawer, beer keg drawer, ready to plug in or for external cooling. All refrigerated cabinets are insulated with high-quality 5 cm high-density polyurethane foam. Pressure ventilation ensures uniform cooling performance and therefore a constant temperature throughout the interior.

Highlights

Stainless steel inside and out
Constant temperature in the entire interior
Evaporator foamed into the rear wall
No more corrosion damage to the evaporator
No evaporators in the interior, ideal for dispensing technology

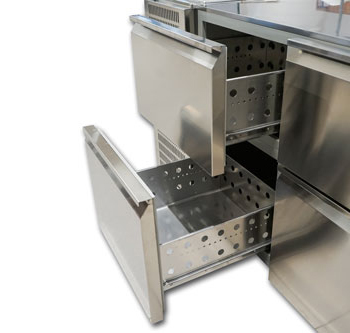

Telescopic drawers max. load capacity 50 kg
Quality telescopic rails
Deep-drawn inner shelf for easy cleaning
Drawers with rounded corners for easy cleaning
Prepared, perforated feed-through channels for beverage lines
Environmentally friendly refrigerant with low GWP
5 cm polyurethane thermal insulation

Product information

incl. 3 doors, 2 drawers, with magnetic seal
Door size WxH: 480x740 mm
1 loading rack (2/5+3/5)
Usable drawer height: 270 mm at the top, 370 mm at the bottom
Refrigeration lines, power, waste water on the left
digital temperature control with temperature display

Technical Data

Version for central cooling
Expansion valve pre-assembled for refrigerant R455a
Other refrigerants possible at extra cost
Temperature range: +2°/+8°C
Connected load: 230 V / 140 W
Dimensions: 232 x 68 x 85 cm (WxDxH)
